產品描述Product description
◆FDZ系列是一款專用型的倒扳開關，也叫搖桿開關或撥動開關，應用于各類小家電，如：廚房攪拌機等。
◆FDZ series are special type lever switches, commonly for used in small home appliances such as Kitchen Mixer, etc.
產品特征Features
◆可選帶以下功能 Optional with following function:
→單極單擲 Single Pole Single Throw (SPST)
→單極單擲點動 Single Pole Single Throw Momentary Act (SPSTM)
技術數據Technical data
→機械耐久壽命 Mechanical life endurance≥1E5
→電氣耐久壽命 Electrical life endurance≥5E4
→最大電流 Max. current at 36V6A
→接觸電阻 Contact resistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7M Ohm
→基本介電強度 Dielectric strength of function500V
→環境溫度 Ambient temperature0°C~85°C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP40
→適用于II類防護器具 Suitable for appliances of protection class II
端子類型Terminals
◆輸入端/輸出端 Input side/Output side:
→焊接端子 Solder terminals 2.7×0.6mm

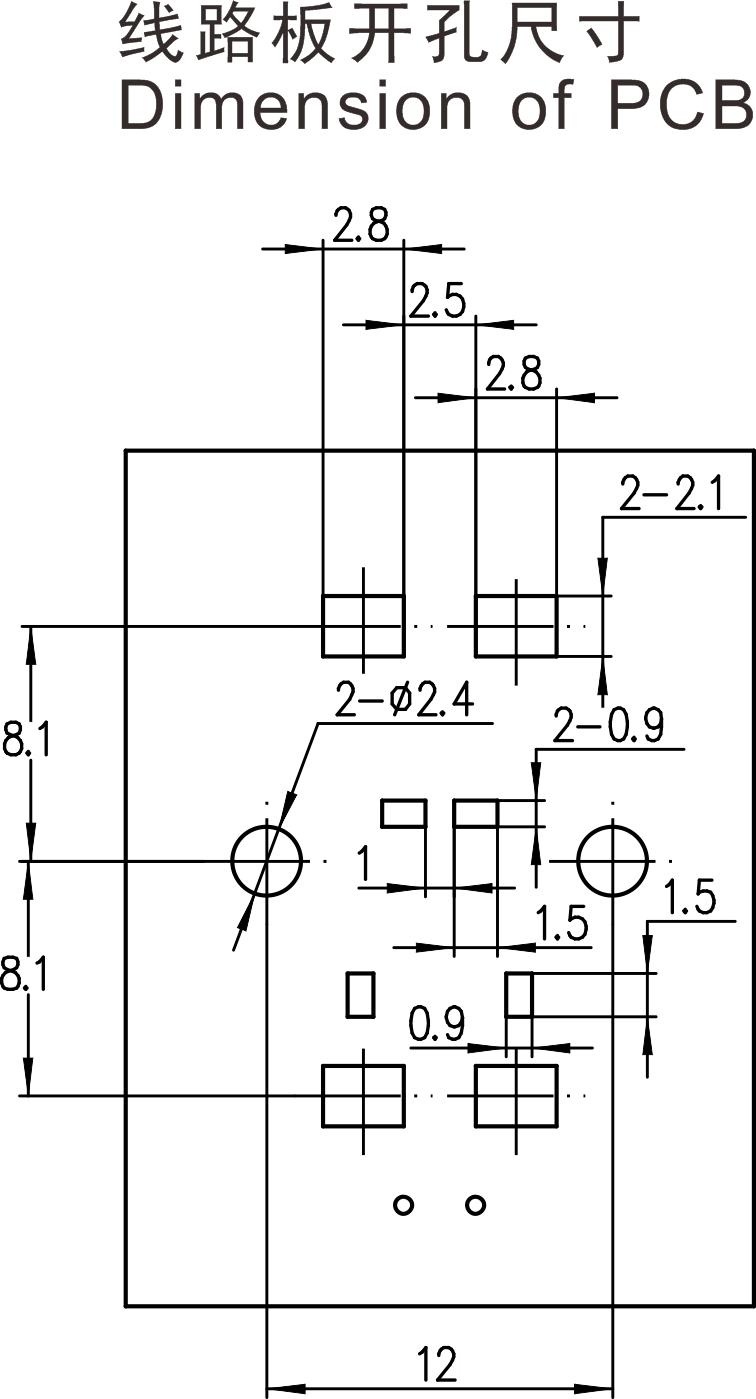

→線路板焊接端子 PCB Soldering terminals 0.8×0.6mm
→線路板焊接端子 PCB Soldering terminals 1.5×0.6mm
電氣參數和認證 Electric Rating and Certification
